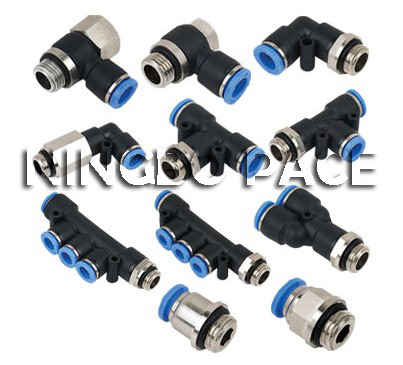

Pneumatic Push In Fittings |
|
Undoubtedly, air cylinders and valves are vital to pneumatic operation, but they would be useless without the parts and pieces to connect the two. There is a multitude of pneumatic accessories for use in pneumatics, what is covered here is only a short list.
Fittings: Located on cylinders and valves are ports, threaded orifices through which air passes. On these ports are mounted fittings used to attach tubing (discussed below). Choices of fittings include barbed and push quick fittings.
Barbed: Barbed fittings are used in applications where a secure and permanent connection is desired. The design uses a barb located on the nipple to "grab" the hose. Depending on the fitting and tubing selected, a clamp may or may not be necessary to secure the connection.
Push-To-Connect: These fittings use internal pressure to hold tubing in place. A great advantage these offer is quick connectivity and disconnection. For the haunter, this is helpful for post Halloween disassembly. Rather than having to deal with clamps and unscrewing other style fittings from cylinders and valves to remove tubing from a prop for storage, with these fittings you simply apply a small amount of pressure to the fitting to disconnect the tubing. This allows all fittings to remain on-board their respective devices.
Tubing: To convey compressed air from valve to cylinder, tubing is needed. There are several materials offered in the pneumatic field, but we will only focus on polyethylene and polyurethane.
Polyurethane: Polyurethane enjoys all the benefits of polyethylene, but with better flexibility. It is a relatively new material and is more user friendly than polyethylene.
Manifold: This accessory simply allows one pneumatic line to be split into several. Very important when running more than one pneumatic prop. The main air line goes into the manifold, and ports located on the manifold allow for 2-10 lines to branch out, depending on the style of manifold, meaning 2-10 pneumatic cylinders could be operated if necessary
