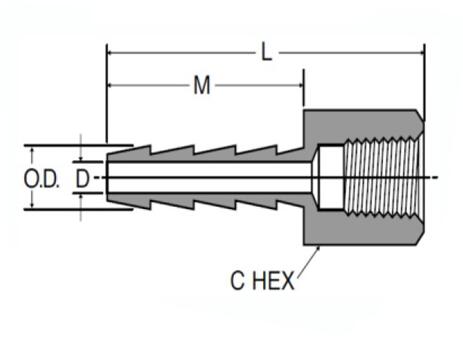

Hose Barb Fittings, Brass Hose Barbs, Brass Hose Splicer

Features

1. Industrial standard-use in all general purpose applications.
2. Material: Brass (Other materials available upon request), straight barstock & forged fittings.

Specification

1. Temp: From -40° to +160°F
2. Pressure Max:. at 150 PSI maximum.
3. Material: CA 360 Brass for Barstock fittings.,CA377 Brass for forged fittings

Installation Instructions

1. Cut hose cleanly and squarely to length.
2. Slide clamp on hose.
3. Push hose on fitting until hose bottoms against stop ring or hex.
4. Use clamp for tightness of hose and fitting

PACE's  hose barb fittings are available for both inch and metric size hoses with NPTF, BSPT, SAE straight thread and metric threads.

Custom configurations and sizes are available upon request. Contact pace@china-pace.com for additional information.
